Electrical data
| Nominal wattage |
16 W |
| Nominal voltage |
220…240 V |
| Nominal current |
130 mA |
| Type of current |
AC |
| Operating frequency |
50…60 Hz |
| Mains frequency |
50…60 Hz |
| Total harmonic distortion |
< 150 % |
Photometrical data
| Luminous flux |
1800 lm |
| Luminous efficacy |
112 lm/W |
| Light color (designation) |
Cool Daylight |
| Color temperature |
6500 K |
| Color rendering index Ra |
> 80 |
| Light color |
865 |
| Flickering metric (Pst LM) |
1 |
| Stroboscope effect metric (SVM) |
0.4 |
Light technical data

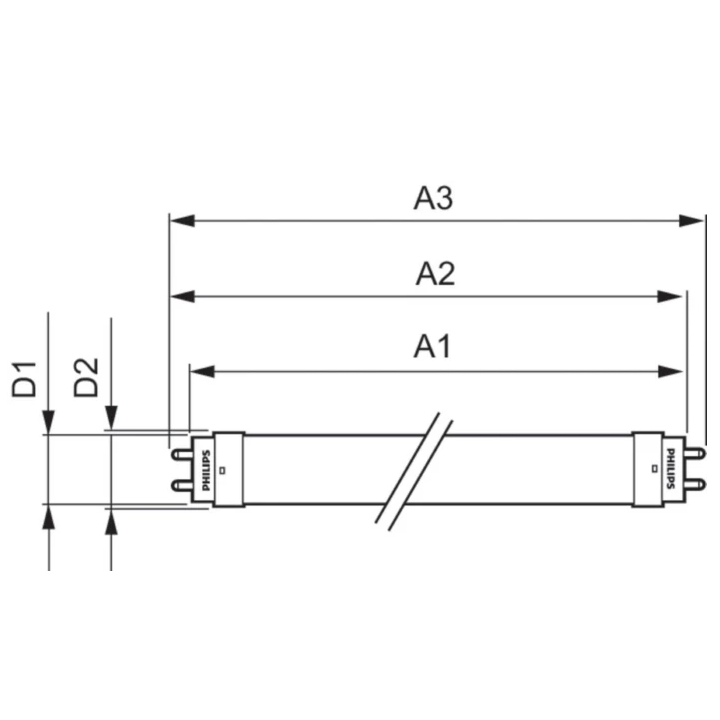

Dimensions & Weight
| Overall length |
1200.00 mm |
| Diameter |
26.90 mm |
| Product weight |
190.00 g |
Temperatures & operating conditions
| Ambient temperature range |
-20…+45 °C |
Lifespan
| Lifespan L70/B50 at 25 °C |
30000 h |
Additional product data

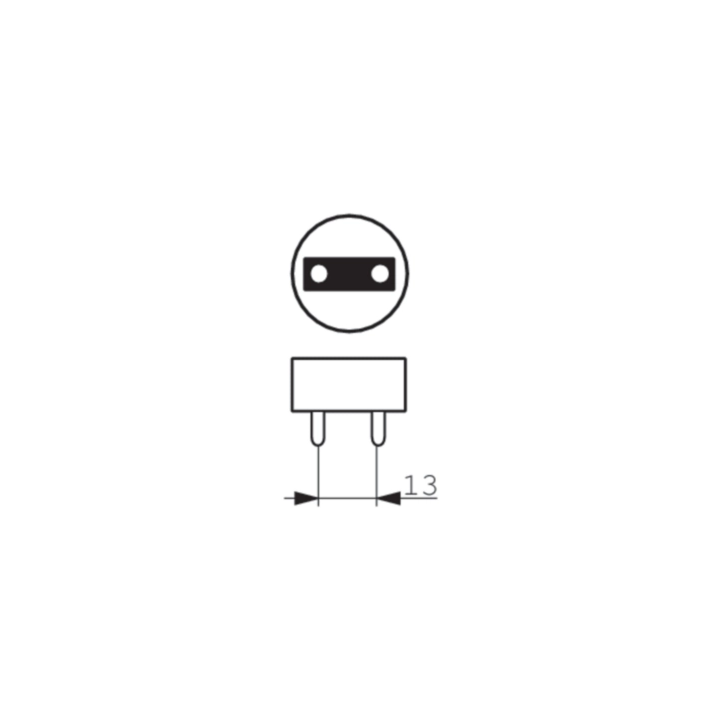

| Base (standard designation) |
G13 |
| Mercury-free |
Yes |
| Design / version |
Frosted |
Certificates & Standards
| Type of protection |
IP20 |
| Standards |
CE, CB |
| Photobiological safety group acc. to EN62778 |
RG0 |
Country-specific categorizations
| Order reference |
ST8E-1.2M 16W/8 |
LOGISTICAL DATA
| Temperature range at storage |
-20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used |
LED |
| Non-directional or directional |
NDLS |
| Mains or non-mains |
MLS |
| Light source cap-type (or other electric interface) |
G13 |
| Connected light source (CLS) |
No |
| Color-tuneable light source |
No |
| Envelope |
No |
| High luminance light source |
No |
| Anti-glare shield |
No |
| Standby power |
0 W |
| Networked standby power for CLS |
0 W |
| Claim of equivalent power |
Yes |
| Length |
1200.00 mm |
| Height |
26.90 mm |
| Width |
26.90 mm |
| Chromaticity coordinate x |
0.3123 |
| Chromaticity coordinate y |
0.3282 |
| R9 Colour rendering index |
>=0.00 |
| Beam angle correspondence |
SPHERE_360 |
| Survival factor |
0.9 |
| Displacement factor |
>=0.7 |
| LED light source replaces a fluorescent light source |
Yes |
| EPREL ID |
686636,2076149 |
| Model number |
AC32675,AC32675,AC66703 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging |
80 % 1) |
| Minimum percentage of recycled content in the product |
0 % 1) |
| Product recyclability |
Mostly recyclable product 1) |
| Packaging recyclability |
Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage |
No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage |
Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
|
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
