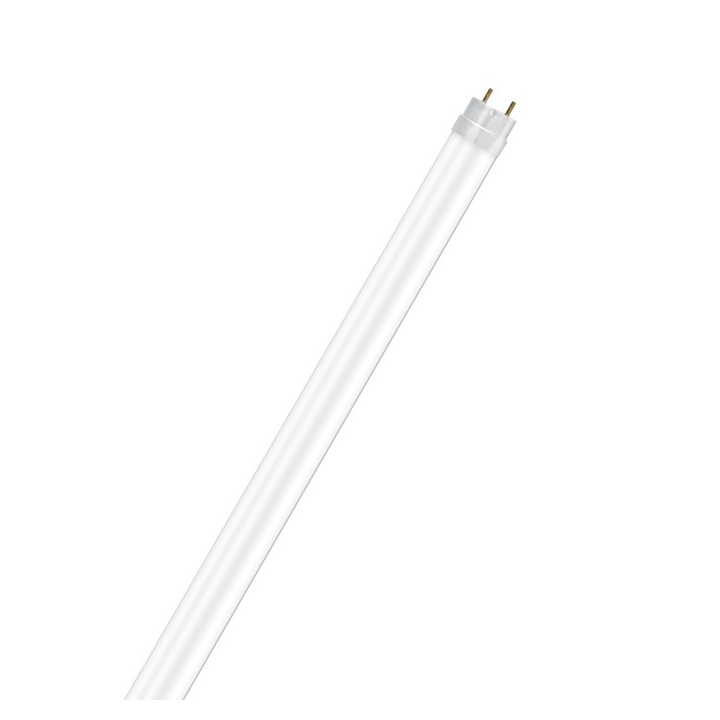

  • OSRAM Λάμπα LED T8 G13 10W 6500K PHILIPS T81065LED | ploutarxoselec...
  • Λάμπα LED T8 G13 10W 6500K PHILIPS OSRAM T81065LED
  • Λάμπα LED T8 G13 10W 6500K PHILIPS OSRAM T81065LED

Λάμπα LED T8 G13 10W 4000K LEDVANCE

Κωδικός: TUBE81040L

7,00 €
με ΦΠΑ

Περιγραφή :

Λάμπα LED T8 G13 10W 4000K LEDVANCE

Τεχνικά
χαρακτηριστικά :
  • Λυχνιολαβή : G13
  • Σχήμα Λαμπτήρα : T8
  • Απόδοση : 10W
  • Απόδοση σε Lumen :1200lm
  • Θερμοκρασία χρώματος  : 4000K
  • Τάση : 220V - 240V
  • Μήκος : 90cm

Συμβατοί  κωδικοί :

TUBE81040L

Θέση προϊόντος στην διασκόρπιση:

Nominal wattage 10 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 47 mA
Type of current AC
Inrush current 10 A
Suitable for DC input Yes
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz 1)
Max. lamp number on MCB B10 A 60
Max. lamp number on MCB B10 A - CCG without compensation 65
Max. lamp number on MCB B10 A - CCG with compensation 21
Max. lamp number on MCB B16 A 75
Max. lamp number on MCB B16 A - CCG without compensation 82
Max. lamp number on MCB B16 A - CCG with compensation 27
Total harmonic distortion < 30 %
Power factor λ 0.90
1) DC 0 Hz
Photometrical data
Luminous flux 1200 lm
Luminous efficacy 120 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

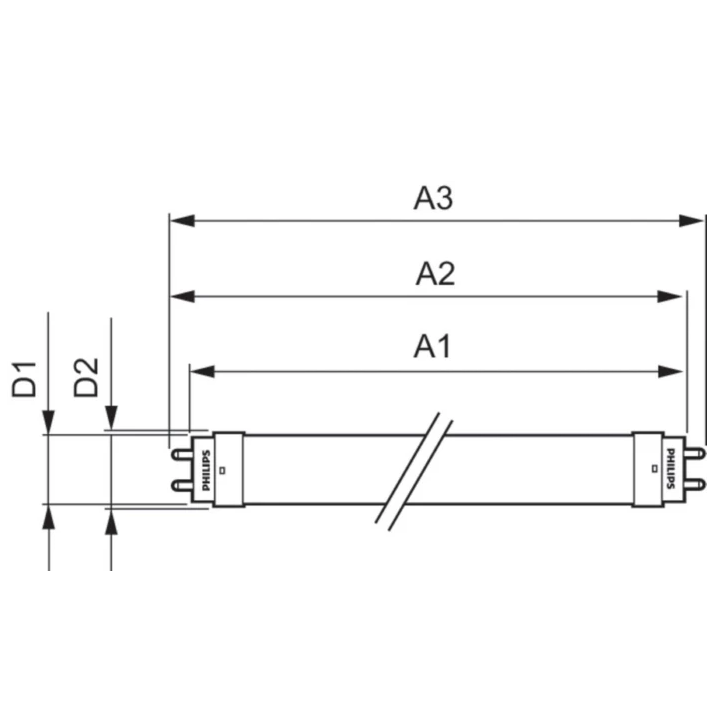

Dimensions & Weight
Overall length 908.00 mm
Length with base excl. base pins/connection 900.00 mm
Diameter 26.70 mm
Product weight 143.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C
Performance temp. acc. to IEC 62717 64 °C 2)
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device
Lifespan
Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data

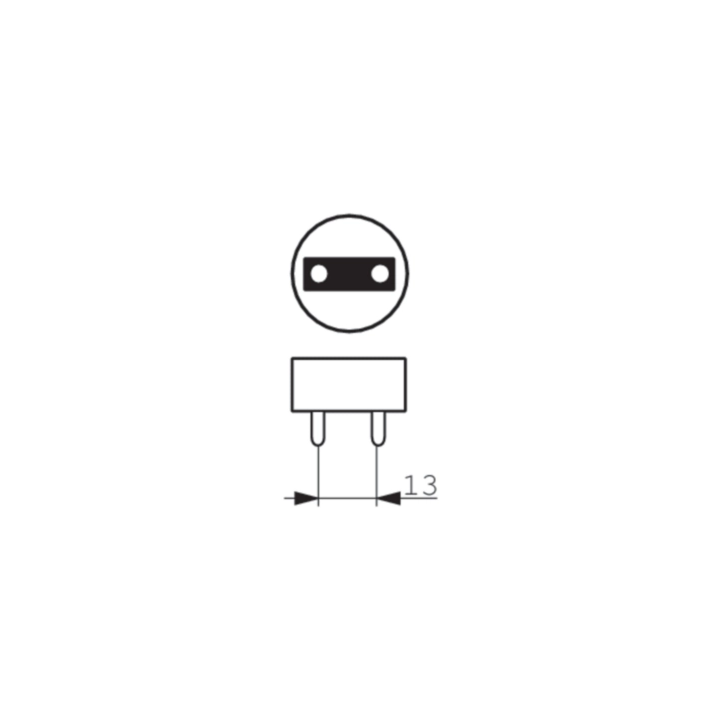

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LEDTUBE T8 EM V
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power <0.5 W
Claim of equivalent power No
Length 908.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.38
Chromaticity coordinate y 0.38
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 2153796
Model number AC69485
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

  • Μάρκα
  • Κωδικός
    TUBE81040L
  • ean13
    4099854435089

  • Θερμοκρασία χρώματος
    6500
  • Απόδοση σε Lumen
    1700
  • Λυχνιολαβή
    G13
  • Σχήμα Λαμπτήρα
    T8
  • Ενεργειακή κλάση
    F
  • Απόδοση σε Watt
    10.3
  • Μήκος σε cm
    60
