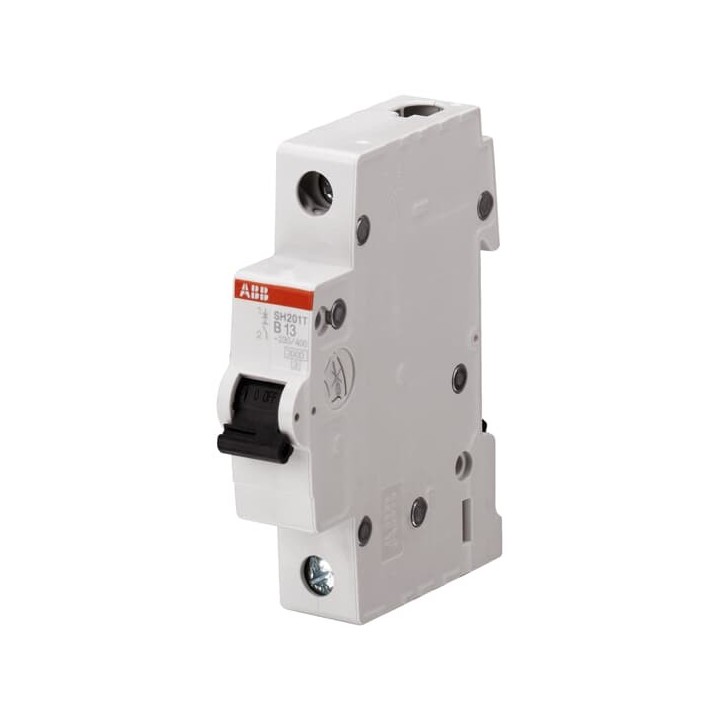

Μικροαυτόματος πίνακος 1X20A SH201T-C20 ABB

Name: Μικροαυτόματος πίνακος 1X20A SH201T-C20 ABB
Brand: ABB
SKU: C20A
Price: 4 EUR
Availability: InStock

Κωδικός: C20A

4,00 €

με ΦΠΑ

Περιγραφή :

Μικροαυτόματος πίνακος 1X20A SH201T-B20 ABB

Τεχνικά χαρακτηριστικά :

· L+N : ΟΧΙ

· Αριθμός πόλων (σύνολο) : 1

· Αριθμός Προστατευόμενων πόλων : 1

· Αριθμός στοιχειων πλατ. 17,5mm : 1

· Βραχυκύκλωμα διακοπής EN 60898 : 3kA

· Δυνατότητα πρόσθ. Εξοπλισμού : ΝΑΙ

· Ονομαστική τάση : 230V

· Ονομαστικό ρεύμα : 20A

· Τύπος τάσης : AC

· Χαρακτηριστικό απόζευξη : C

Συμβατοί κωδικοί :

RGA0003, SH201T-C20, SH200T-C20

Technical

Standards:

IEC/EN 60898-1
Number of Poles:

1
Number of Protected Poles:

1
Tripping Characteristic:

B
Rated Current (I_n):

20 A
Rated Operational Voltage:

acc. to IEC 60898-1 230 / 400 V AC
Rated Voltage (U_r):

230 V AC
Power Loss:

2.5 W
at Rated Operating Conditions per Pole 2.5 W
Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V
Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Rated Frequency (f):

50 / 60 Hz
Rated Short-Circuit Capacity (I_cn):

(230 / 400 V AC) 3 kA
Energy Limiting Class:

3
Overvoltage Category:

III
Pollution Degree:

2
Rated Impulse Withstand Voltage (U_imp):

4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Dielectric Test Voltage:

50/60 Hz, 1 min: 2 kV
Housing Material:

Insulation Group II, RAL 7035
Actuator Type:

Toggle
Actuator Material:

Insulation Group II, Black, Sealable
Actuator Marking:

I / O
Contact Position Indication:

ON / OFF
Degree of Protection:

IP20
Electrical Endurance:

20000 AC cycle
Mechanical Endurance (N_endu):

20000 cycle
Terminal Type:

Screw Terminals
Screw Terminal Type:

Cage Terminal
Connecting Capacity:

Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Tightening Torque:

2 N·m
Recommended Screw Driver:

Pozidriv 2
Mounting on DIN Rail:

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position:

Any
Built-In Depth (t₂):

69 mm
Installation Size:

acc. to DIN 43880 1
Power Supply Connection:

Arbitrary

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:

30 °C
Resistance to Shock acc. to IEC 60068-2-27:

25g / 2 shocks / 13 ms
Resistance to Vibrations acc. to IEC 60068-2-6:

5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Environmental Conditions:

28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
RoHS Status:

Following EU Directive 2011/65/EU

Dimensions

Product Net Width:

17.5 mm
Product Net Depth / Length:

69 mm
Product Net Height:

85 mm
Product Net Weight:

0.125 kg

Container Information

Ordering

Minimum Order Quantity:

1 piece
Customs Tariff Number:

85362010

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:

9AKK107046A5460
Environmental Information:

2CDK400030D0201
Instructions and Manuals:

Printed on packaging
RoHS Information:

2CDK400030D0201

Popular Downloads

Data Sheet, Technical Information:

2CSC400030D0202
Instructions and Manuals:

Printed on packaging

Classifications

Object Classification Code:

F
ETIM 6:

EC000042 - Miniature circuit breaker (MCB)
ETIM 7:

EC000042 - Miniature circuit breaker (MCB)
ETIM 8:

EC000042 - Miniature circuit breaker (MCB)
eClass:

V11.0 : 27141901
UNSPSC:

39121614

Μάρκα
Κωδικός

C20A
ean13

4016779632003
