Electrical data
| Nominal wattage |
35 W |
| Construction wattage |
35.00 W |
| Nominal voltage |
12 V |
| Power factor λ |
1.00 |
Photometrical data
| Luminous intensity |
1000 cd |
| Luminous flux |
430 lm |
| Nominal useful luminous flux 90° |
430 lm |
| Luminous efficacy |
12 lm/W |
| Lumen main.fact.at end of nom.life time |
0.75 |
| Light color (designation) |
Warm White |
| Color temperature |
2900 K |
| Color rendering index Ra |
100 |
| Light color |
1029 |
| Rated peak intensity |
1000 cd |
| UV protection |
Yes |
Light technical data
| Beam angle |
36 ° |
| Warm-up time (60 %) |
0.00 s |
| Starting time |
0.0 s |
| Rated beam angle (half peak value) |
36.00 ° |

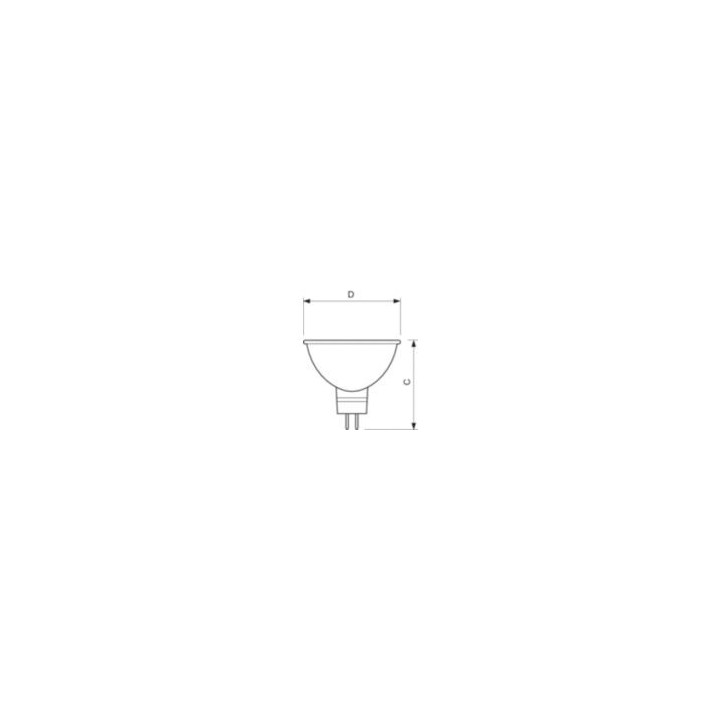

Dimensions & Weight
| Overall length |
46.00 mm |
| Diameter |
51.0 mm |
| Maximum diameter |
51 mm |
| Product weight |
30.56 g |
Lifespan
| Lifespan |
4000 h |
| Number of switching cycles |
100000 |
Additional product data
| Base (standard designation) |
GU5.3 |
| Mercury content |
0.0 mg |
| Mercury-free |
Yes |
| Design / version |
Reflector |
Capabilities
| Dimmable |
Yes |
| Burning position |
Any |
Certificates & Standards
| Energy efficiency class |
G |
| Energy consumption |
38.00 kWh/1000h |
Country-specific categorizations
| ILCOS |
HRGS//UB-35-12-GU5.3-51/36 |
| Order reference |
44865 ST WFL |
